AIM-1 Laser Aiming Light


Laser, Diode Type, 1989-1997


The earliest origins of these devices date back to 1986, with the ITM (Industrial Technology & Machines) Mini Laser Designator. Seen below is the device’s debut from Shot Show, reported by Combat Handgunner.

The prototype/early generation version can also be seen in ‘Manchete’ magazine, published in Brazil in 1986, shown below.

Three soldiers wearing military gear, each equipped with different firearms and night vision equipment, posing against a neutral background.

At some point, the technology was given, licensed, or transferred to the manufacturer we know the AIM lasers by today.

The ‘AIM-1’ series of lasers were developed by International Technologies (Lasers) Ltd. in Israel, and made by both them, and Litton Laser Systems in the US.
These devices were made from 1989 until at least 1997. Their most famous use was by DEVGRU in Somalia, 1993, during Operation Gothic Serpent.

Their true history can be traced back to 1986, with the “ITM Mini Laser Designator” as seen on an ITM AT84 which was manufactured in Switzerland by Solothurn, seen in Shot Show 1986.

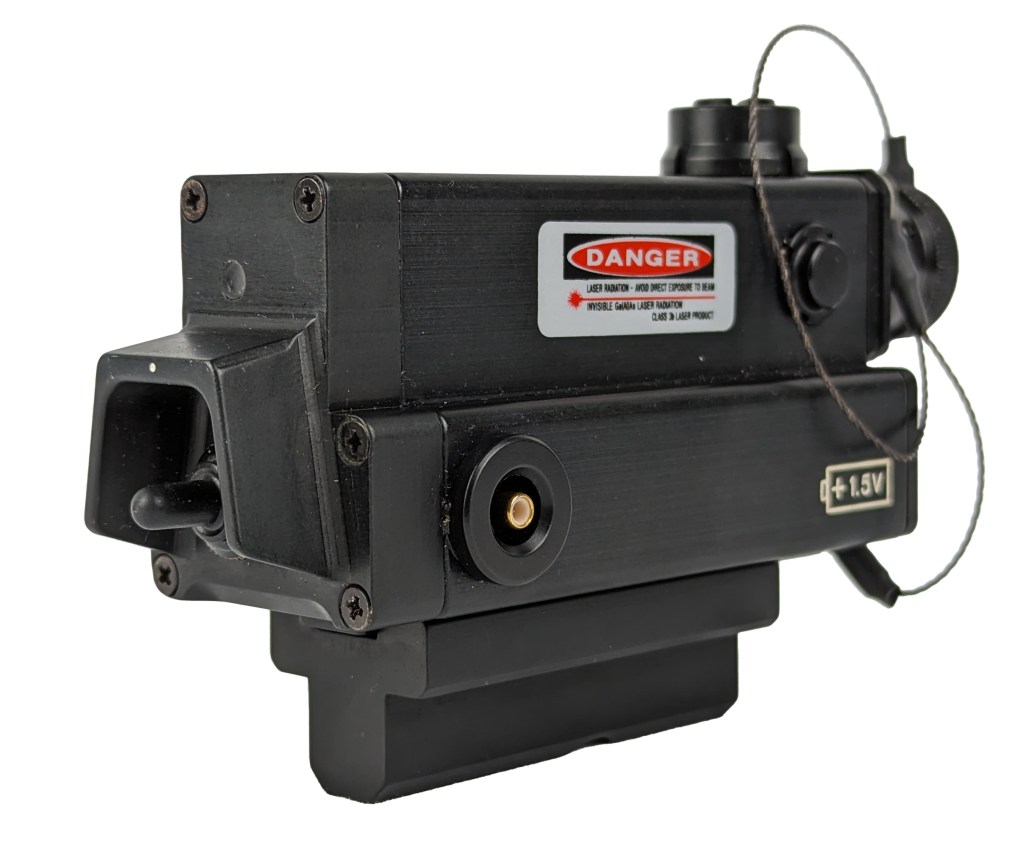

The AIM-1/MLR

The AIM-1 in terms of infantry use was never widely distributed, and seems to have had most of it’s use associated with aircraft mounted weapons.
In practical terms, as an infantry-borne laser, it was obsoleted by the advent of the PAQ-4B and PAQ-4C in 1992/3 which grew in popularity quickly.

Even before then, the AIM-1 was contending for use with the prior versions of the PAQ-4.
These lasers have been used by Israel, the U.S. Army and Marines, and Turkey.

In 2001, Litton Laser Systems was acquired by Northrup Grumman, and is currently Northrop Grumman Electronic Systems.
At some point, ITL became ITL Optronics LTD, and then later was acquired by Elbit Systems.

As of 2007, these lasers were still in US stockpiles.

Data table of models:

ModelIntentWavelength (nm)Range (m)Power (mW)Power SupplyModesSwitch Position
AIM-1/RVisible6701501Single 1.5V AA
AIM-1/DGeneral purpose
(This is the version preferred by cloners)
8105001.5Two 1.5V AA’s5 Position:
Off, on, remote
Side
AIM-1/DLRFor light and heavy machine guns, as well as squad weapons such as the Mk19. This could be used as a night vision aiming device, or as a boresighter device with the correct boresight adapter.830300015Two 1.5V AA’s5 Position:
Off, on, remote
Side
AIM-1/MLRFor shipborne and airborne machine guns.
(This is the more common and available variant on the commercial market)
83030001524/28V External Connections3 Position:
Off, 10 (weak), hi (strong)
Rear/Remote
AIM-1/EXLTo be controlled via helicopter gunner.830300015Two 1.5V AA’s3 Position:
Off, 10 (weak), hi (strong)
Rear/Remote
AIM-1/SLRFor ultra long range observation and targeting, and attack helicopters targeting at extended ranges.8301000050Two 1.5V AA’s10 (remote control),
hi (remote control)
AIM-1/SLXSame as the AIM-1/SLR but with an external power supply option.830100005012/24/28V
AIM-1/CThe “Covert” version, touted as a new generation of miniaturized laser aiming lights, in 2005 at the DSEI.
AIM-1/VV for “Visible”. The new generation of the AIM-1/R.640200Single 1.5V AA
AIM-1/SLT???
Only mention I could find is in the ILT Optronics brochure at FIDAE 2006.
