The LS45, first made in 1987 by iMatronic from England, is probably one of the most iconic “Retro” laser weapon sights. While these were advertised through 1993, I have not seen any examples made after 1989.
iMatronic did make other models, but more on those another time.
Initially they sold the LS45 through “Laser-Sight Inc”.

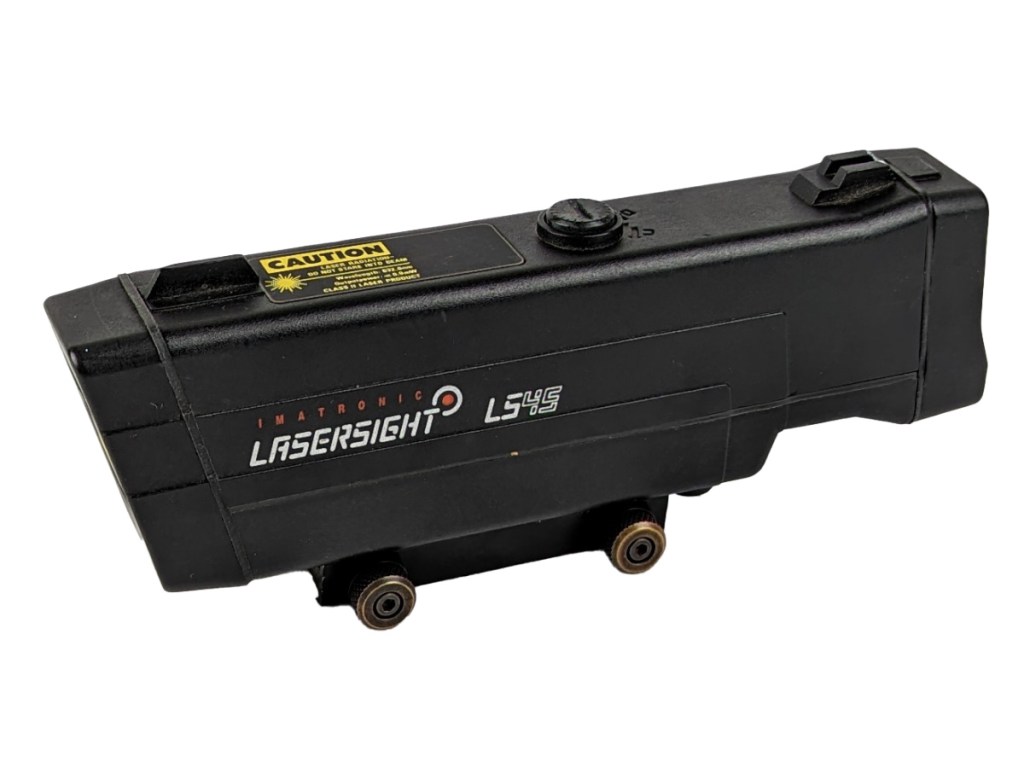

It is activated via remote switch in the form of a wrap-around pad, uses two 9 volt batteries, and produces a 3-5 MOA dot (advertised specs differ).
It has backup iron (plastic) sights, and the only activation mode is momentary-on. Battery life is 45+ minutes of operation (dubious).

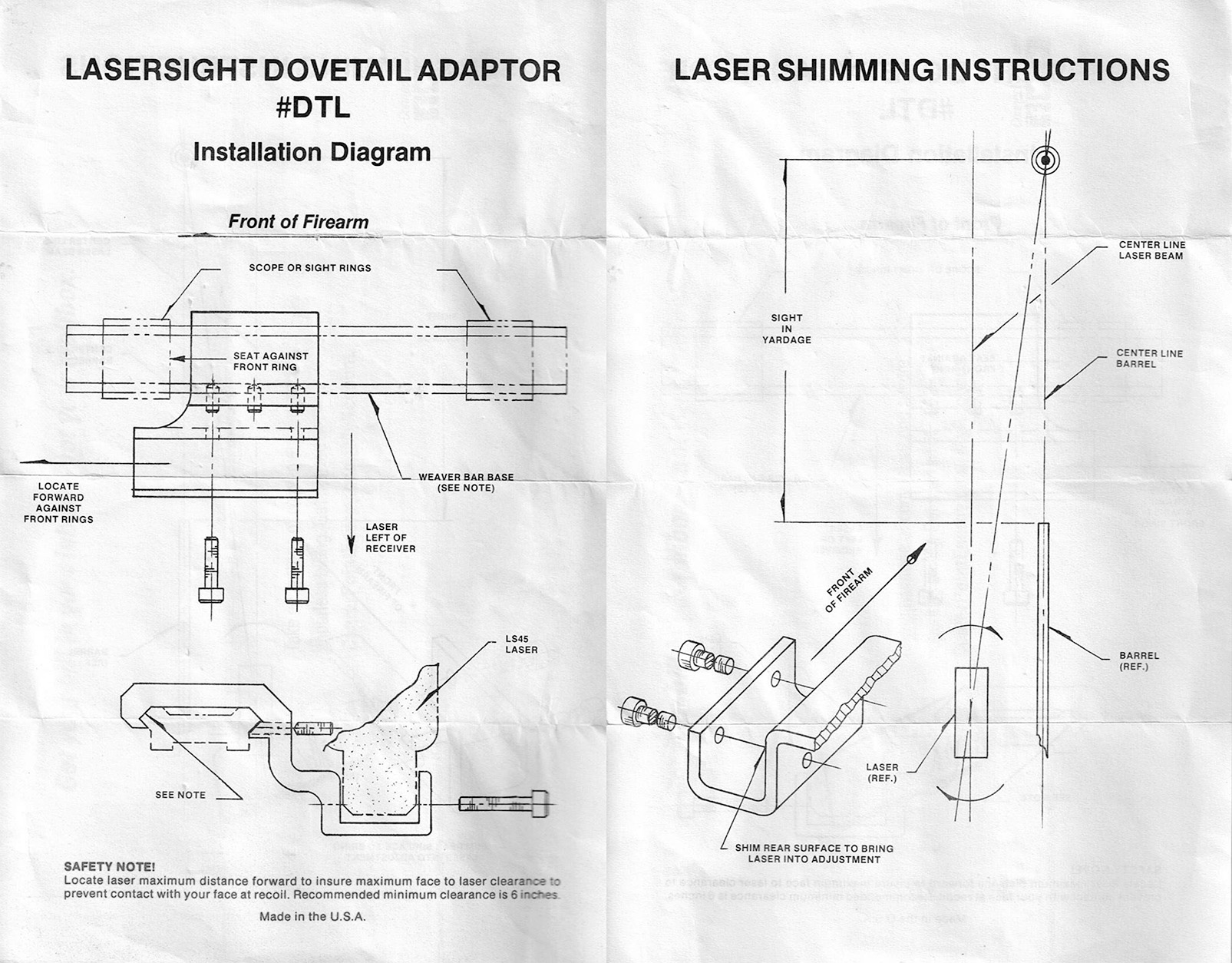

The integrated mount is rather cumbersome to set up and was made to work with older dovetail rails, although it can weakly attach to picatinny.
It sports a HeNe laser tube, standard for the time, but unlike other devices provides an additional housing that is more box than cylinder.

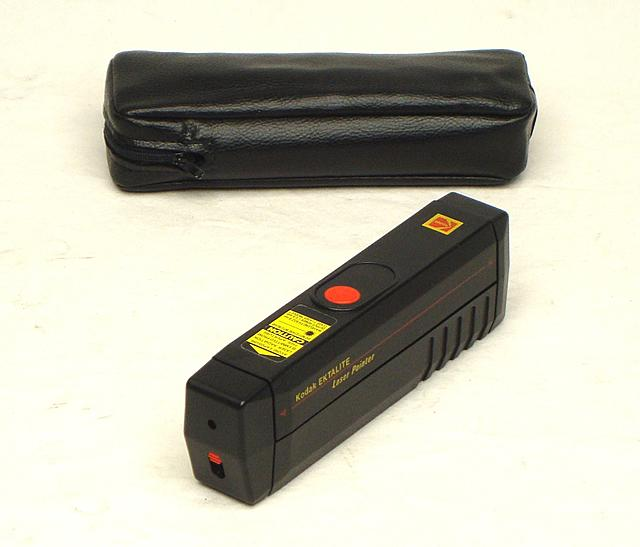

Regarding it’s invention, I do not believe it to be pure coincidence that in 1989 the Kodak ‘Ektalite’ (made and invented by iMatronic) hit the shelves, and bears similar stylings, as well as being HeNe powered.
But back to the LS45 itself.

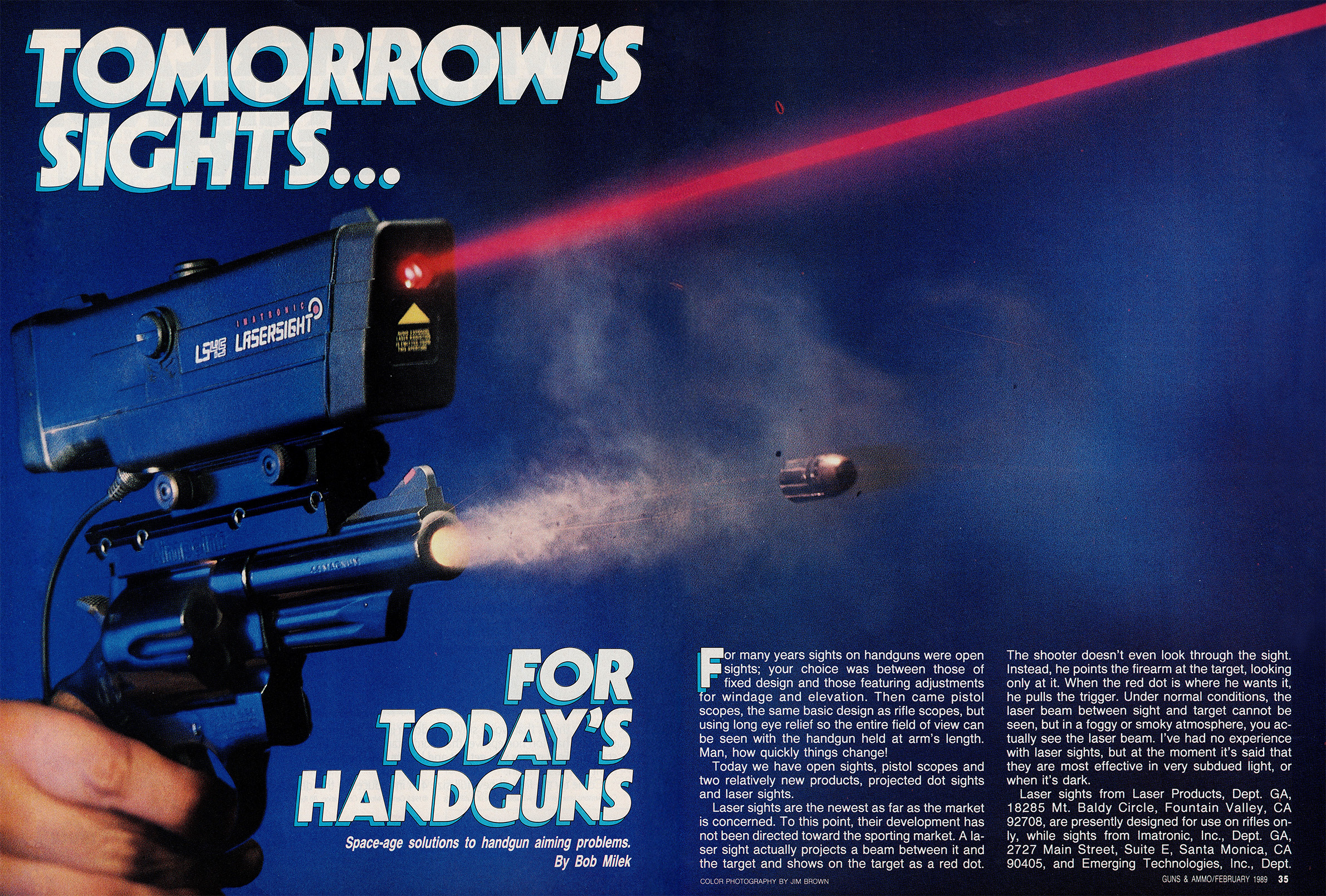

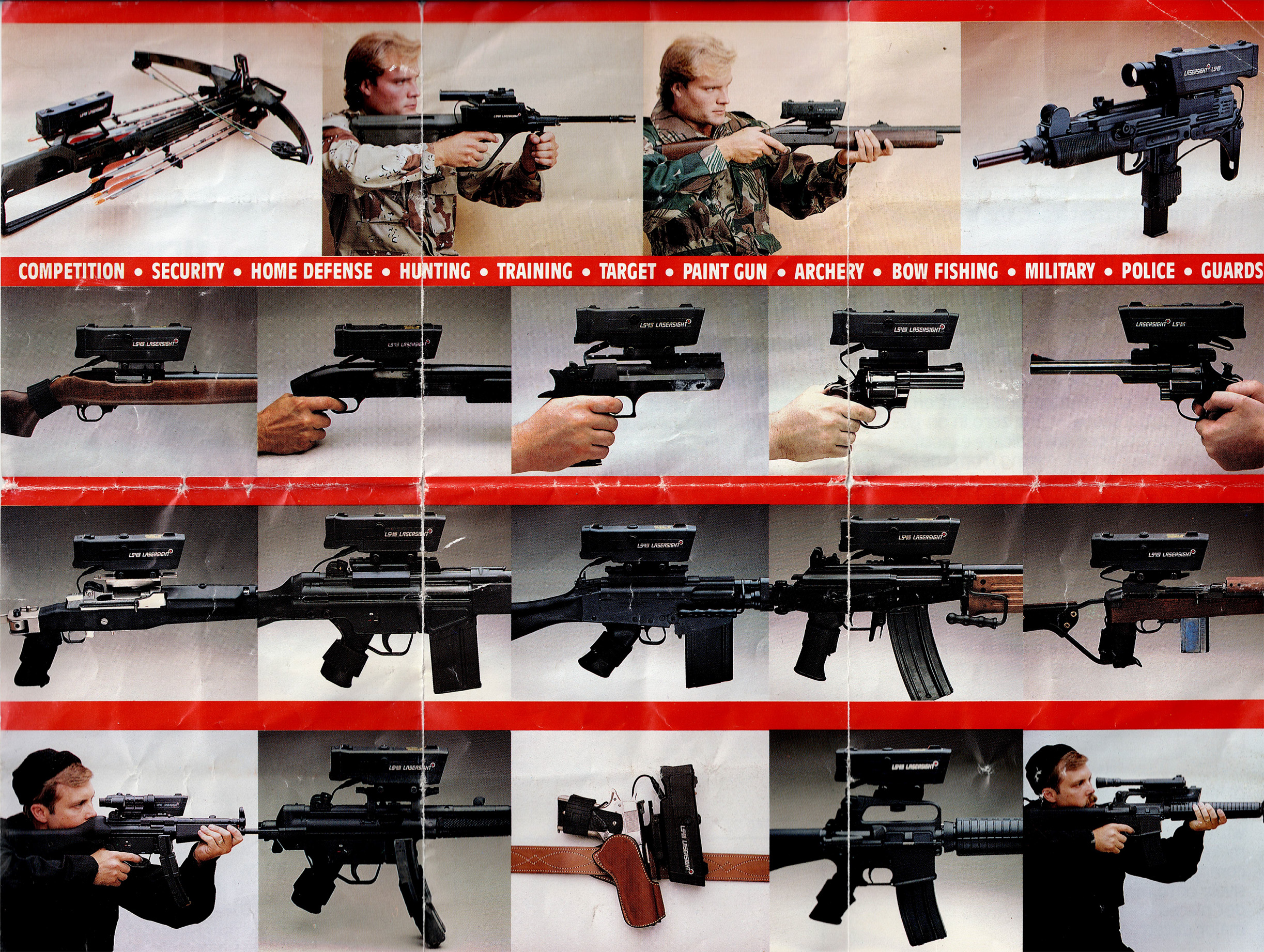

The device was marketed to everyone and anyone. From special forces all the way down to paintball, the LS45 had something to offer.
The laser sight was heavily featured in the film “Terminator 2”, in which the prop department attached a Pana-Vue 2 slide viewer. It can also be seen in “Universal Soldier” (1992), “District 9” (2009), “Leprechaun 4: In Space” (1997), and “Tango and Cash” (1989).

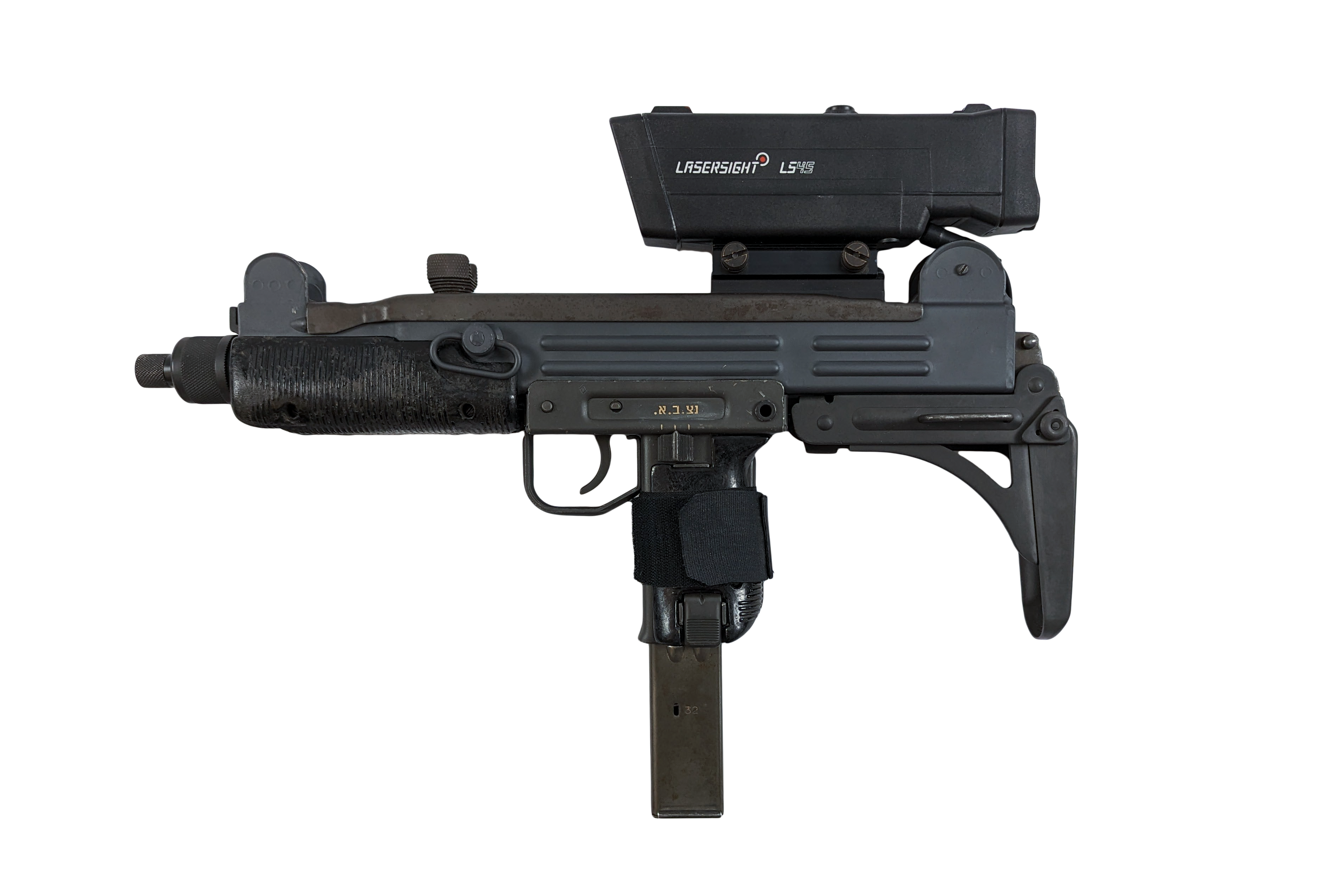

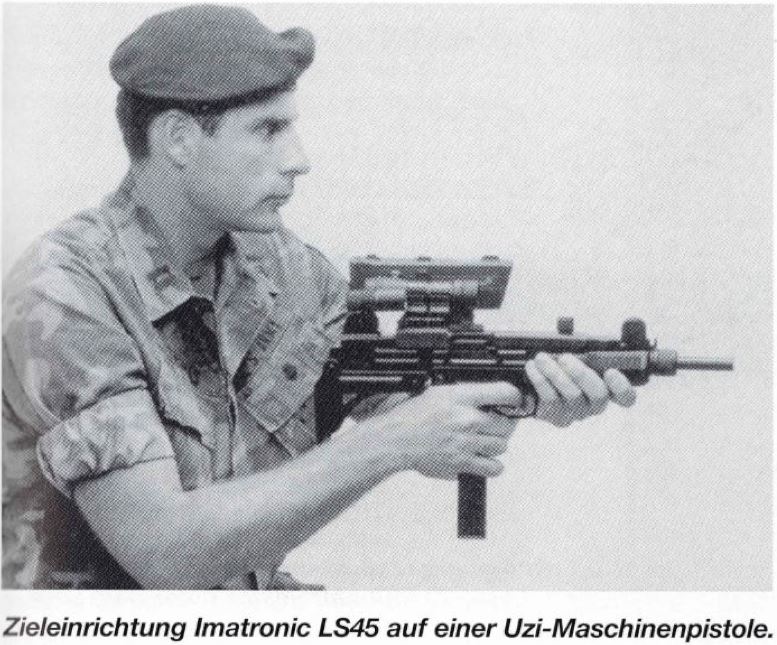

The LS45 had a proprietary offset mount for the Uzi made by B-Square.
Originally these were sold for around $400 depending on retailer. This was roughly half the price of competing, comparable laser sights at the time. Near the end of their sales lifespan (~1993) they could be purchased for $250.

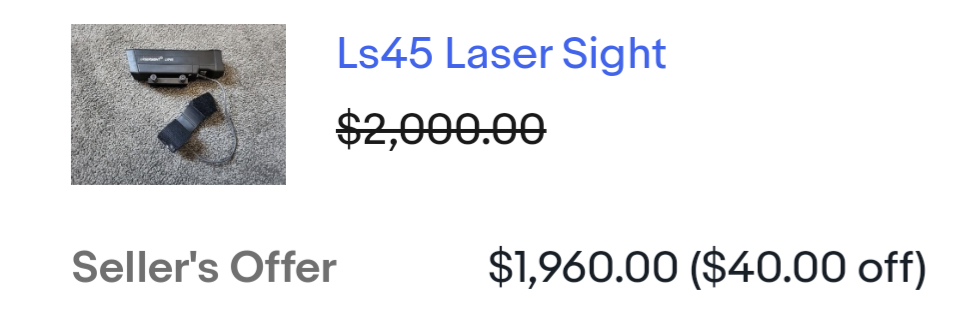

These days the devices can be found on the second hand market a few times a year, however recently there have been one or two instances of people greatly inflating the asking price.
Generally these can be purchased for $250-400, and sometimes closer to $150 so please do not buy one of these for what is shown below…
I believe the French term for that pricing is “El Crackhead Momento”
Interestingly, Laser Devices Inc was a listed warranty center. You may know them better as Steiner eOptics today.
You can pull the activation plug out ~1/8″ to activate the laser and keep it on, which the manual says is useful for zeroing. In some documents, iMatronic refers to the device as the “Tracer LS45”.
Alkaline batteries are highly recommended, as the manual states that Zinc Carbon and Nickel Cadmium batteries reduce the usage life to only 75-100 four-second bursts.
Personally, I think the laser works best when you use two of them…
