Confused on what model number goes with what gun? You came to the right place.
Release dates differ, but the first light, the 310, was developed in 1985. No “Classic” weaponlights were produced past 2005, although modernized versions of some models are still produced today.
Note that depending on the time period, these items would be “Laser Products Corp.” products, as they later became Surefire.
EX: “Surefire 633R”
– First number is generally a 3 or 6, indicating 3 or 6 volts (the shorter L30, or longer L60 light module).
– (A 5 means a visible laser, and a 4 means both a tactical light+laser).
– For the later “universal” mounted lights, a 9 prefix is possible, meaning 9 volts, and using the MN10/MN11 lamp module.
– The last two numbers indicate what model of firearms the flashlight will fit (’33’ in the example means it fits Beretta 92 series handguns).
– Handgun models can be followed by an “R”, meaning it has a “SlimLine” switch that wraps around the grip.
– Shotguns, rifles, and SMG’s have different suffix meanings, which are too varied to lay out here. See linked sources if interested.
– If you are trying to find any of these to buy, I suggest using the ‘6’ prefix, as it is the most common by far.
Note that this table does not include the M500 series of lights. Those will be discussed separately.
| Prefixes | Suffix | For Gun | Mount Type | Example | Manuals | |||
| 3, 5, 6 | 01 | S&W Pistols 59&69 Series, Model 659 & 669 w/ round trigger guards | Dedicated, H01 Housing | Listing | Year?? | |||
| 3, 5, 6 | 02 | S&W Pistols 10 series 10mm, w/square trigger guards | Dedicated, H02 Housing | 1995 | ||||
| 3, 5, 6 | 03 | S&W Pistols 10 & 45 Series, 10mm & 45ACP w/ Round trigger guards | Dedicated, H03 Housing | 1995 | ||||
| 3, 5, 6 | 04 | S&W Pistols 40 Series, .40 S&W with square trigger guards | Dedicated, H04 Housing | 1995 | ||||
| 3, 5, 6 | 05 | S&W Pistols 40 Series, .40 S&W with round trigger guards | Dedicated, H05 Housing | 1995 | ||||
| 3, 5, 6 | 06 | Beretta 1200PF, 12 Gauge Shotgun | Dedicated, H06 Housing | 1997 | ||||
| 3, 5, 6 | 07 | Para-Ordnance .45 cal pistols | Dedicated, H07 Housing | 1999 | 2000 (R) | |||
| 3, 5, 6 | 08 | S&W Sigma Pistols | Dedicated, H08R Housing | 1997 | ||||
| 3, 5, 6 | 09 | H&K USP Fullsize .40 & .45 | Dedicated, H09R Housing | HKPro, Listing | 1998 (R) | |||
| 3, 5, 6 | 10 | Colt pistols, government model, 45ACP and other “O” frame Pistols, & Delta Elite 10mm | Dedicated, H10 Housing | Article | 1999 | 1999 (R) | ||
| 3, 5, 6 | 11 | AMT Hardballer Pistols, 1911A1, 45ACP | Dedicated, H11 Housing | 1995 | ||||
| 12 | ??? | |||||||
| 3, 6 | 13 | Beretta 92F, 96F | Dedicated, H13 Housing | Forum Thread | 1995 | 1997 (R) | ||
| 3, 5, 6 | 14 | Sig Sauer P220, .45 ACP | Dedicated, H14 Housing | |||||
| 3, 5, 6 | 15 | H&K USP Compact, .40 | Dedicated, H15 Housing | Article | ||||
| 3, 4, 5, 6 | 16 | Benelli M1 Super 90 12 Gauge, Serial No. M104800 and earlier | Dedicated, H16 Housing | Listing, Listing | 1995 | 1995 (FG) | 1995 (F) | |
| 3, 4, 5, 6 | 17 | Benelli M1 Super 90 12 Gauge, Serial No. M104801 and later | Dedicated, H17 Housing | >Reddit, Listing | 1999 | |||
| 3, 4, 5, 6 | 18 | Remington 870 Shotgun, 12 Gauge | Dedicated, H18 Housing | Auction, Listing | 2000 | |||
| 19 | ??? | |||||||
| 3, 4, 5, 6 | 20 | Remington 1100 and 11-87 | Dedicated, H20 Housing | Listing, Listing | ||||
| 3, 4, 5, 6 | 21 | Mossberg 500 with 14″ barrel or 6 ¾” forend tube | Dedicated, H21 Housing | 1998 | ||||
| 3, 4, 5, 6 | 22 | Mossberg Model 500 | Dedicated, H22 Housing | |||||
| 3, 4, 5, 6 | 23 | Mossberg 590, or 500 with 7 ¾” forend tube | Dedicated, H23 Housing | Listing | ||||
| 3, 4, 5, 6 | 24 | Ithaca 37, 87 Shotguns, 12ga | Dedicated, H24 Housing | HKPro | ||||
| ??? | 25 | Carl Gustaf Ak5 Assault rifle, 5.56 mm | Dedicated, H25 Housing | Forum, Twitter | ||||
| 3, 4, 5, 6 | 26 | Mossberg 3000, Smith & Wesson 3000 Shotguns, 12ga | Dedicated, H26 Housing | |||||
| 27 | ??? | |||||||
| 3, 4, 5, 6 | 28 | H&K MP5, HK94, HK53 9mm & .223 (Built in Momentary ON) | Dedicated, H28 Housing | Blog, >Reddit | ||||
| 3, 4, 5, 6 | 29 | H&K MP5, HK94, HK53 9mm & .223 (Remote Pistol Grip Momentary ON) | Dedicated, H29 Housing | |||||
| 3, 6 | 30 | Browning High Power | Dedicated, H30 Housing | Facebook, Article | ||||
| 3, 4, 5, 6 | 31 | H&K MP5, HK94, HK53 9mm & .223 | Dedicated, H31 Housing | |||||
| 3, 5, 6 | 32 | Sig Sauer P226, 9mm | Dedicated, H32 Housing | Worthpoint, Listing | ||||
| 3, 5, 6 | 33 | Beretta 92F, 92SB, M9 | Dedicated, H33 Housing | Flikr, >Reddit | 2000 (R) | |||
| 3, 5, 6 | 34 | S&W Pistols 59 & 69 Series Pistols with square trigger guards, 9mm | Dedicated, H34 Housing | |||||
| 3, 4, 5, 6 | 35 | Winchester Defender w/ short Forend | Dedicated, H35 Housing | Listing | ||||
| 3, 4, 5, 6 | 36 | Winchester Defender w/ long Forend | Dedicated, H36 Housing | Listing | ||||
| 3, 5, 6 | 37 | Beretta 96F, 10mm | Dedicated, H37 Housing | Forum | ||||
| 3, 5, 6 | 38 | H&K P7, 9mm | Dedicated, H38 Housing | HKPro, Cached | 1999 | 1996 (H) | ||
| 39 | ??? | |||||||
| 3, 5, 6 | 40 | Sig Sauer P228, P229, 9mm | Dedicated, H40 Housing | Facebook, SigTalk | 1995 | 1998 (R) | 1996 (AO1) | 1997 (H) |
| 41 | ??? | |||||||
| 3, 5, 6 | 42 | Sig Sauer P225, 9mm | Dedicated, H42 Housing | |||||
| 43 | ??? | |||||||
| 3, 5, 6 | 44 | Glock Gen 1/2, Glock 17, 19, 22, 23, 24 | Dedicated, H44 Housing | Arfcom | ||||
| 3, 5, 6 | 45 | Glock Gen 1/2, Glock 20, 21 | Dedicated, H45 Housing | |||||
| 46 | ??? | |||||||
| 47 | ??? | |||||||
| 48 | ??? | |||||||
| 49 | ??? | |||||||
| 50 | ??? | |||||||
| 3, 4, 5, 6 | 51 | American Arms & Mitchell Arms AK-47 Rifles, 7.62×39 cal | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6 | 52 | Armalite AR180, AR18 Rifles, .223 cal | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6 | 53 | Beretta M12S SMG, 9mm | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6 | 54 | Beretta SC70, AR70 Rifles, .223 | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 55 | ??? | |||||||
| 56 | ??? | |||||||
| 3, 4, 5, 6 | 57 | UZI SMG, Carbine, 9mm | Univ., M32 Uzi Barrel Mount | |||||
| 3, 4, 5, 6 | 58 | Calico 951 Carbine, 9mm | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6, 9 | 59 | Colt SMG, CAR 15/16, Commando 9mm, Carbines, .223 (Barrel mount) | Univ., M10 or M16 Mount | Listing | ||||
| 3, 4, 5, 6, 9 | 60 | Colt CAR 15/16, M4 Carbines, .223 (Barrel mount) | Univ., M10 + M14 Ring and Barrel Mount | Listing, Forum | ||||
| 3, 4, 5, 6, 9 | 61 | Colt AR15, M16 Rifles, .223 (Barrel mount) | Univ., M10 or M16 Mount | |||||
| 3, 4, 5, 6, 9 | 62 | Colt AR15, M16 Rifles, .223 (Barrel mount) | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 63 | ??? | |||||||
| 64 | ??? | |||||||
| 3, 4, 5, 6 | 65 | FN/FAL LAR HB5041, 42, PARA5064, FNC, Rifles, .223 | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6 | 66 | Galil AR Rifle, .223 | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 5, 6 | 67 | H&K SP89 Pistol, 9mm | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 6 | 68 | H&K MP5K, MP5K-PDW (with or without suppressor), 9mm | Univ., M10 + M14 Ring and Barrel Mount, or HK MP5K Mount Base | |||||
| 3, 4, 5, 6 | 69 | H&K MP5SD, MP5N with Navy Suppressor, 10mm | Univ., M13 Large Diameter Suppressor Mount | |||||
| 6 | 70 | H&K HK53 Rifle, .223 | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 6, 9 | 71 | H&K 33, 93 (Charging Tube Plug Mount) | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 6 | 72 | H&K G3 & HK91 Rifles, .308 | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 6 | 73 | Steyr AUG Rifle, .223 | Univ., M27 Steyr Aug Fixed Scope Mount | |||||
| 6, 9 | 74 | Colt SMG, CAR 15/16, M4 Carbines, 9mm, .223 (Front sight post mount) | Univ., M25 Colt Rifle FSP Mount | |||||
| 3, 4, 5, 6 | 75 | Remington 1100, 1187 Shotguns, 12ga | Univ., M19 Mag Tube Mount | Ebay Listing | ||||
| 3, 4, 5, 6 | 76 | Colt SMG, CAR 15/16, M4 Carbines, 9mm, .223 (Front sight post mount) | Univ., M26 Colt Rifle FSP Mount | |||||
| 3, 4, 5, 6 | 77 | Ruger Mini-14, 14GB, Mini 30 Rifles, .223, 7.62×39 | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 6, 9 | 78 | Colt AR15, M16 Rifles, .223 (Front sight post mount) | Univ., M25 Colt Rifle FSP Mount | |||||
| 79 | ??? | |||||||
| 3, 4, 5, 6 | 80 | Colt AR15, M16 Rifles, .223 | Univ., M26 Colt Rifle FSP Mount | |||||
| 3, 4, 5, 6 | 81 | Springfield M1A Rifle, .308 | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 3, 4, 5, 6 | 82 | H&K SP89 Pistol, 9mm | Univ., M24 Suppressed MP5 Gas Plug Mount | |||||
| 3, 4, 5, 6 | 83 | Steyer AUG Rifle, .223 | Univ., M28 Steyr Aug Fixed Scope Mount | >Reddit, Listing | ||||
| 3, 4, 5, 6 | 84 | UZI Carbine, 9mm | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 85 | ??? | |||||||
| 3, 4, 5, 6 | 86 | Winchester 1400 Shotgun, 12ga | Univ., M19 Mag Tube Mount | |||||
| 6 | 87 | H&K MP5K, MP5K-PDW (with or without suppressor), 9mm | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 88 | Australian Arms SAP, MPSAP Pistols, .223, 7.62×39, 9mm | Univ., M10 + M14 Ring and Barrel Mount | |||||
| 89 | ??? | |||||||
| 3, 4, 5, 6 | 90 | H&K MP5K, MP5K-PDW (with suppressor), 9mm | Univ., M22 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 91 | H&K MP5K-PDW (with suppressor), 9mm | Univ., M24 Suppressed MP5 Gas Plug Mount | |||||
| 6 | 92 | H&K MP5, MP5N, HK94, MP5 with MK25 Suppressor, MP5N with Navy Suppressor, 9mm | Univ., M21 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 93 | H&K MP5, MP5N, HK94, 9mm | Univ., M22 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 94 | H&K MP5N with Navy Suppressor, 9mm | Univ., M24 Suppressed MP5 Gas Plug Mount | |||||
| 3, 4, 5, 6 | 95 | H&K MP5 with MK25 Suppressor, 9mm | Univ., M30 Suppressed MP5 Gas Plug Mount | |||||
| 3, 4, 5, 6, 9 | 96 | H&K MP5SD, 9mm | Univ., M23 MP5SD Suppressor Mount | |||||
| 3, 4, 5, 6 | 97 | H&K HK53 Rifle, .223 | Univ., M22 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 98 | H&K 33, 93 (Charging Tube Plug Mount) | Univ., M22 Unsuppressed HK Rifle Gas Plug Mount | |||||
| 3, 4, 5, 6 | 99 | H&K G3 & HK91 Rifles, .308 | Univ., M22 Unsuppressed HK Rifle Gas Plug Mount |

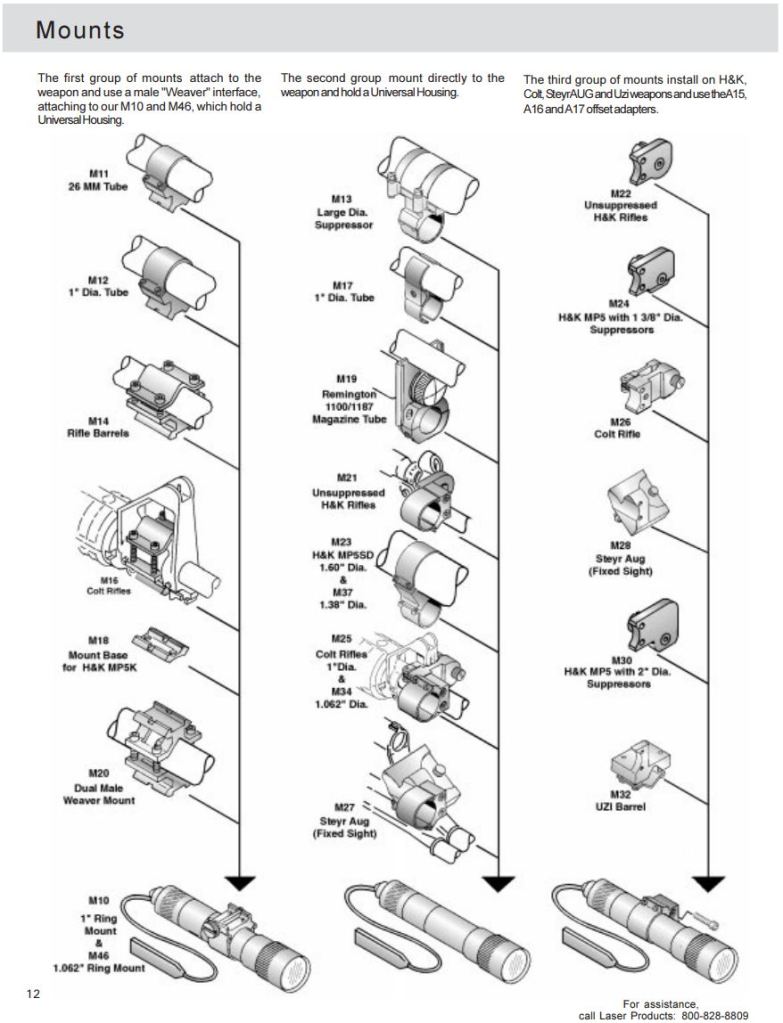

What are all these “Universal” mounts exactly, and how do they differ from the non-universal mounting options/housings?

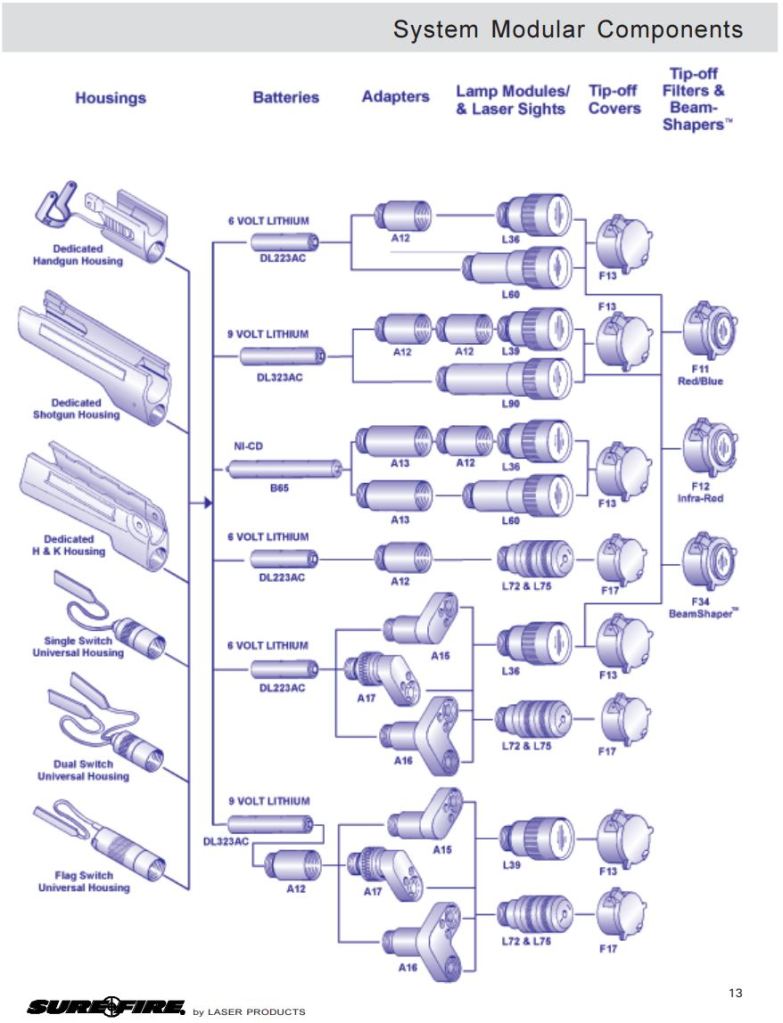

See below. This was Surefire’s attempt at making their mounting more modular and versatile. Notable objects include the highly sought after A15-A17 adapters which add offset mounting for the 628 MP5 light, allowing the use of a suppressor, and the M14/M16 mounts, commonly seen on BHD, Scud Chaser, and Blood Diamond clone rifles.
General Sources:
